项目 |
Unit |
CK6160Q |
大加工轮毂直径 |
Inch |
24" |
X轴大行程 |
mm |
320 |
主电机功率 |
kw |
4 |
导轨宽度 |
mm |
260 |
大加工工件长度 |
mm |
500 |
轮毂测量方向 |
X、Z | |
测量工具 |
mm |
激光或探针(二选一) |
测量方法 |
激光扫描或者探针点测 | |
程序优化 |
全自动和手动 | |
轮毂加工程序储存数量 |
100000 | |
数控系统 |
自主研发 | |
轮毂加工 |
表面 | |
机床加工精度 |
IT6~IT7 | |
表面光洁度 |
um |
Ra0.8~1.6 |
主传动形式 |
无极调速 | |
主轴调速范围 |
rpm |
工厂设定50-1000 |
快速移动速度 |
mm/min |
X :5000 Z :8000 |
重复精度 |
mm |
X :0.01 Z :0.015 |
刀架形式 |
排刀、手动刀架、电动刀架 | |
车刀刀柄尺寸 |
mm |
25×25 |
机床外形尺寸(L×W×H) |
mm |
1900×1400×1750 |
机床净重 |
kg |
1100
|

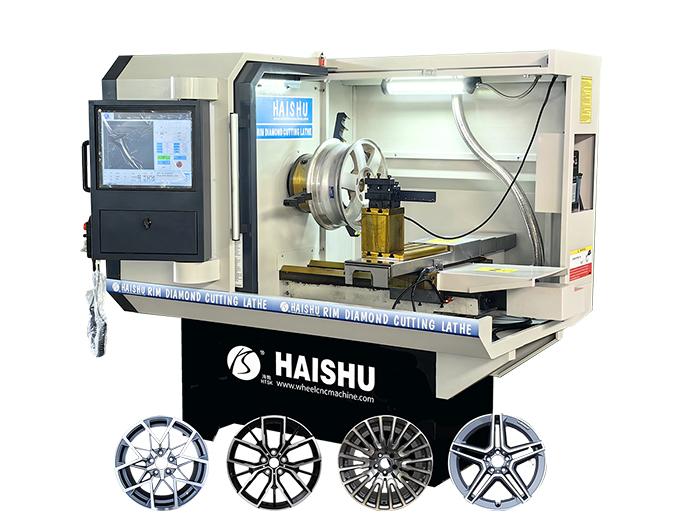

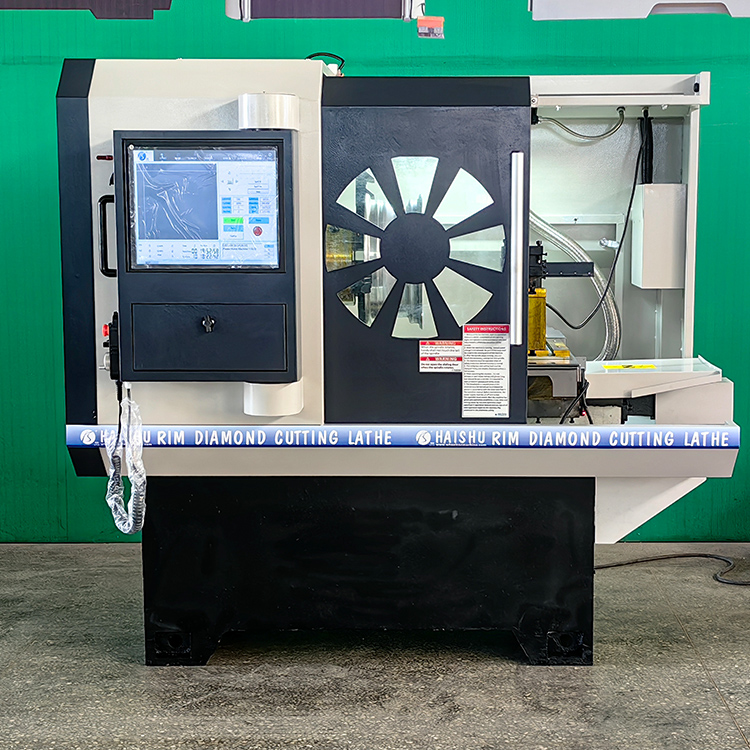

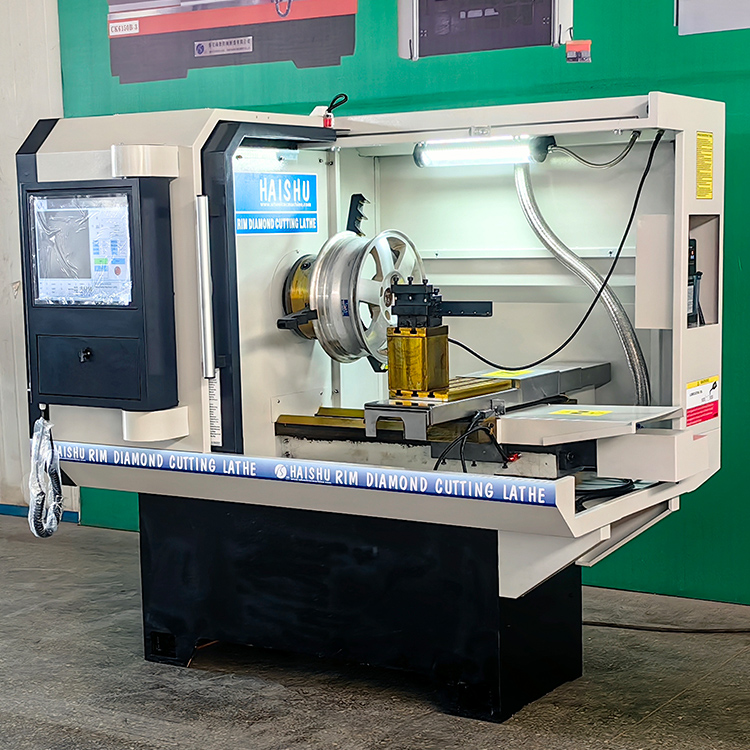

这款汽车轮毂拉丝机是专门为修复和翻新汽车轮毂设计的轮毂拉丝机。可以修复的尺寸范围在24吋以内。采用了由海数专心研发和升级的系统,经过了10多年的产品升级已经成熟。
These models are gear wire drawing machines specially designed for repairing and refurbishing car wheels. The size range that can be repaired is within 24 inches. It adopts the system developed and upgraded by Haishu. After more than 10 years of product upgrades, it has matured.
而且在探测方面我们采用了激光探测,探针探测,刀尖探测多种方式。
In terms of detection, we have adopted various methods such as laser detection, probe detection, and knife tip detection.
刀架方式也是有排刀架,手动刀架,电动刀架的方式。
The knife rest mode also has row knife rest, manual knife rest and electric knife rest.

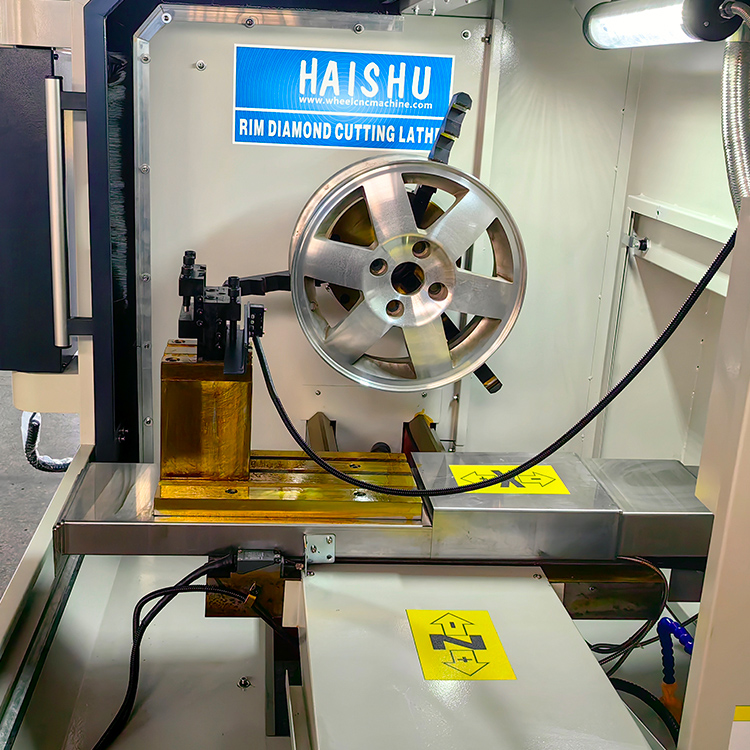

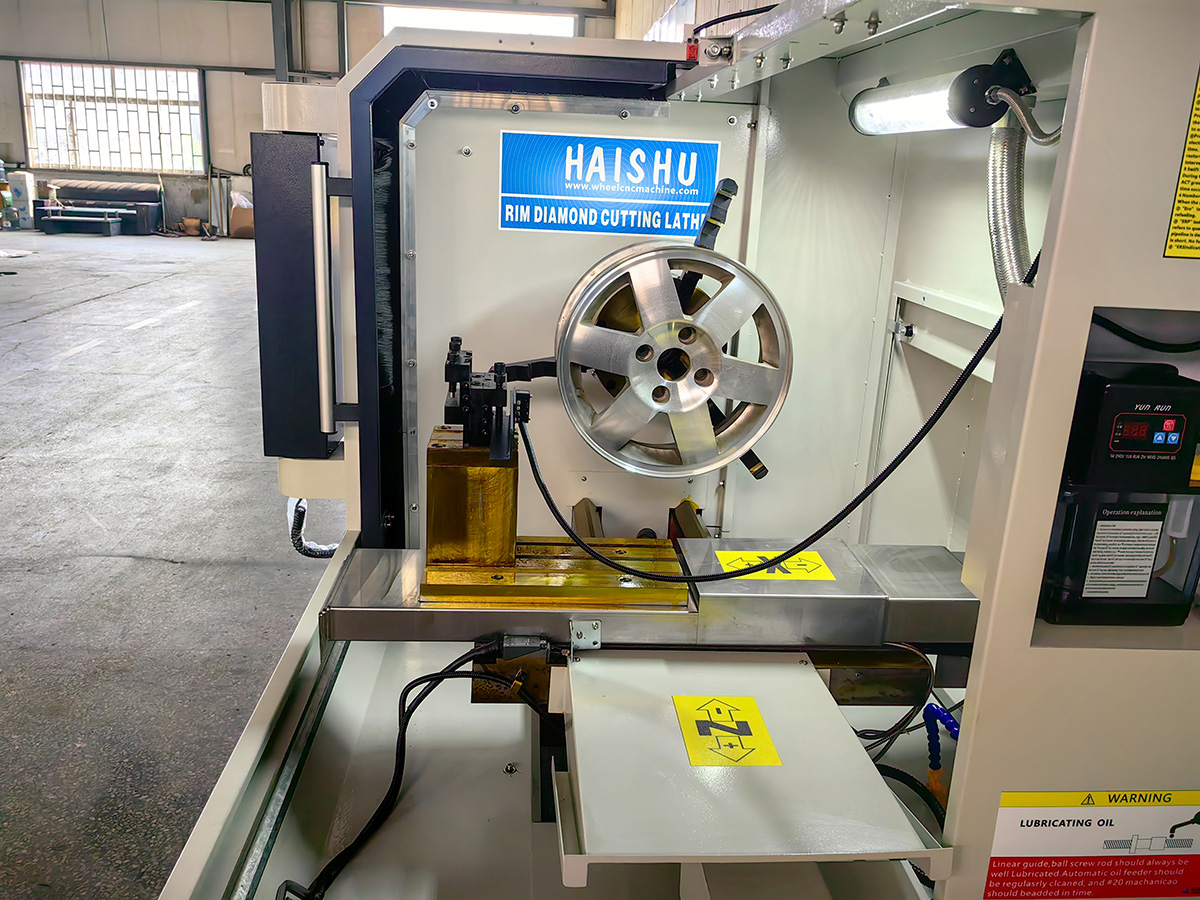

轮毂夹具也拥有中心轴夹紧和卡盘夹紧,气动夹紧,电动夹紧等方式
The rotary fixture also has central axis clamping and chuck clamping, pneumatic clamping, electric clamping and other methods
